Specs

General Info

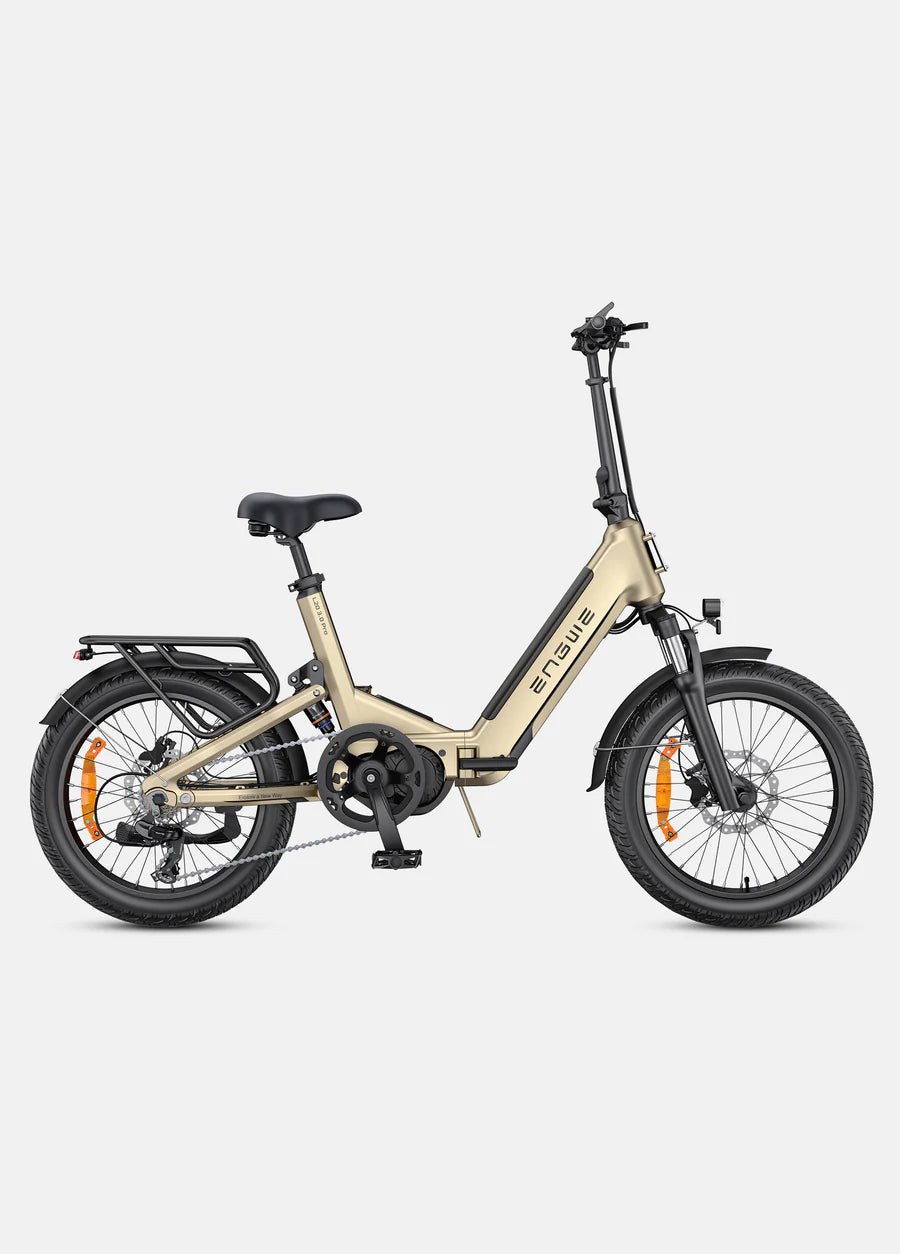

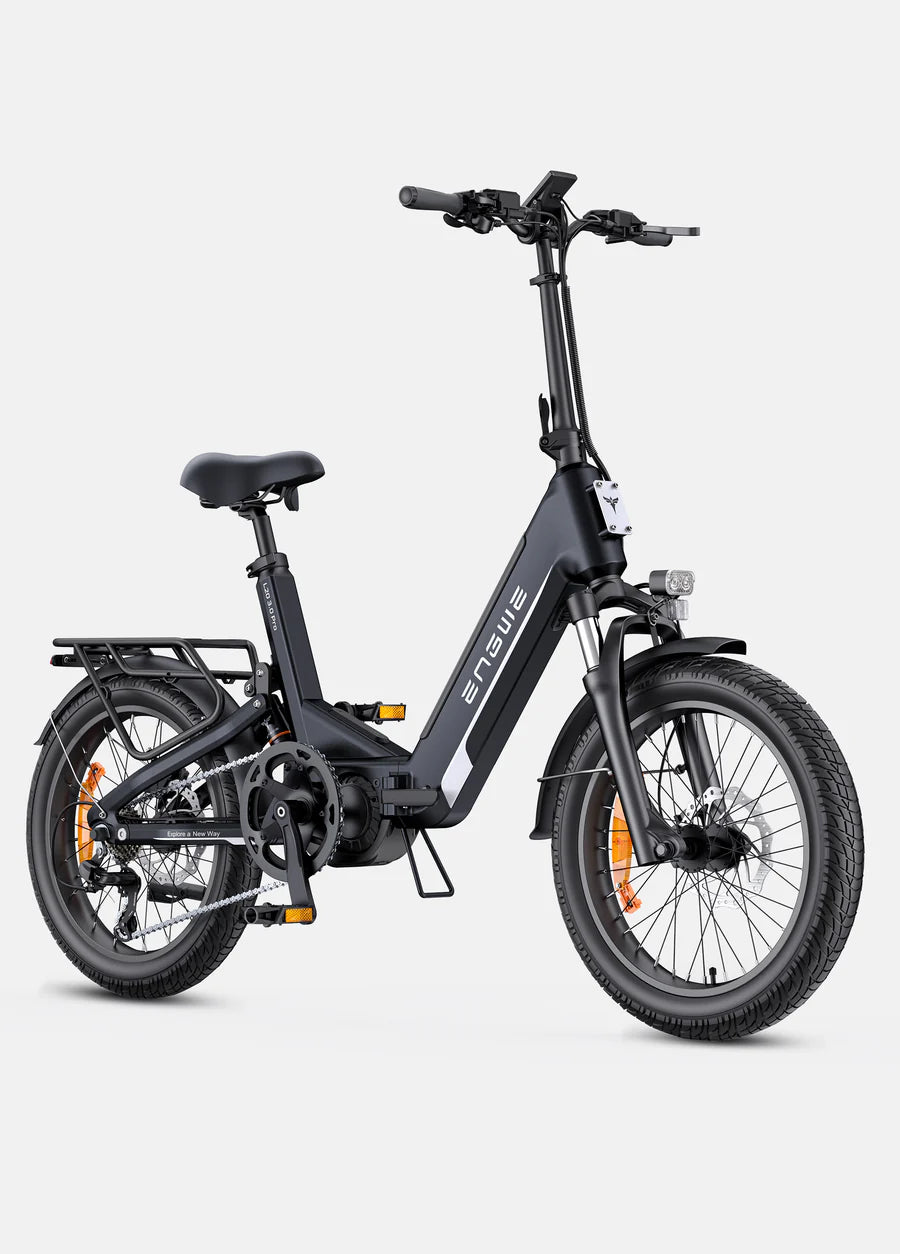

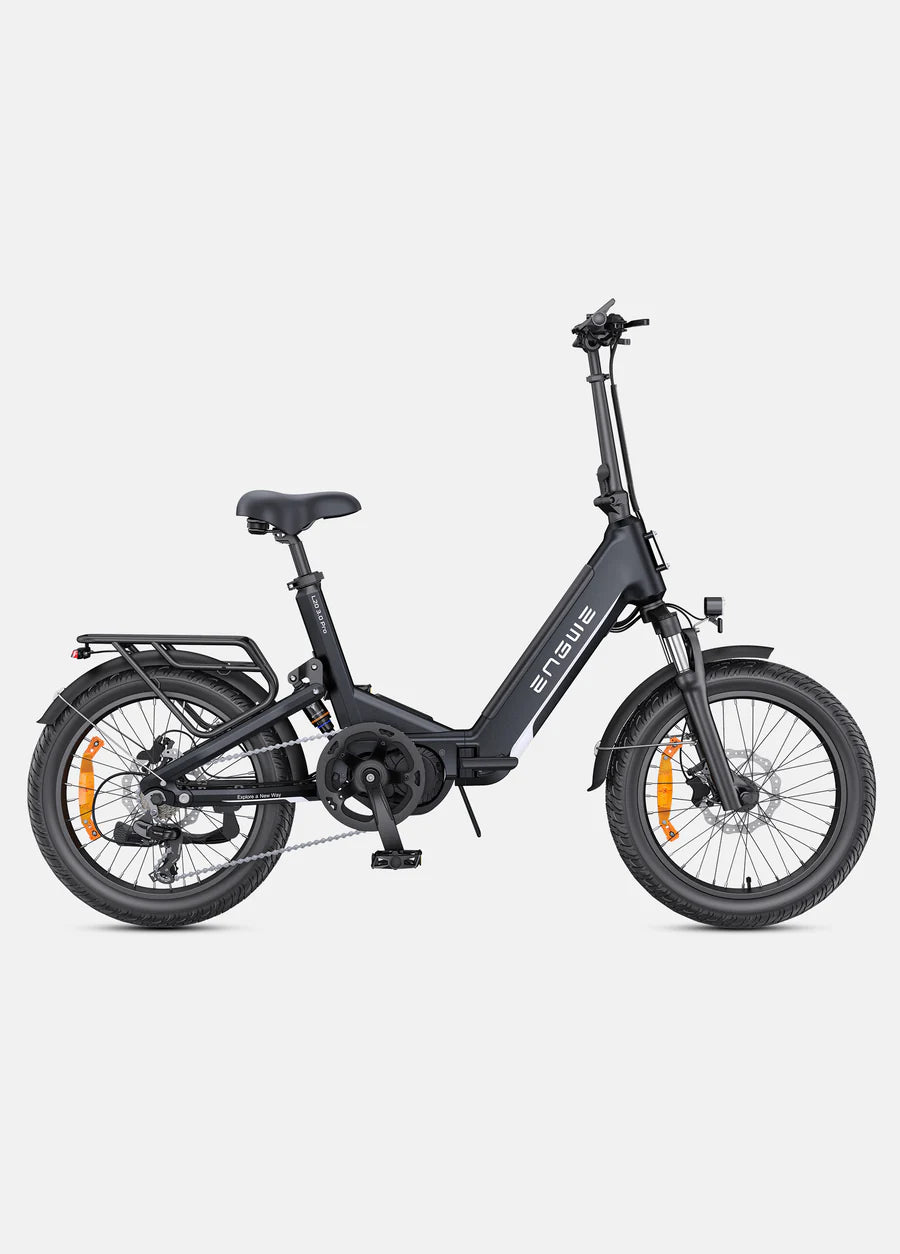

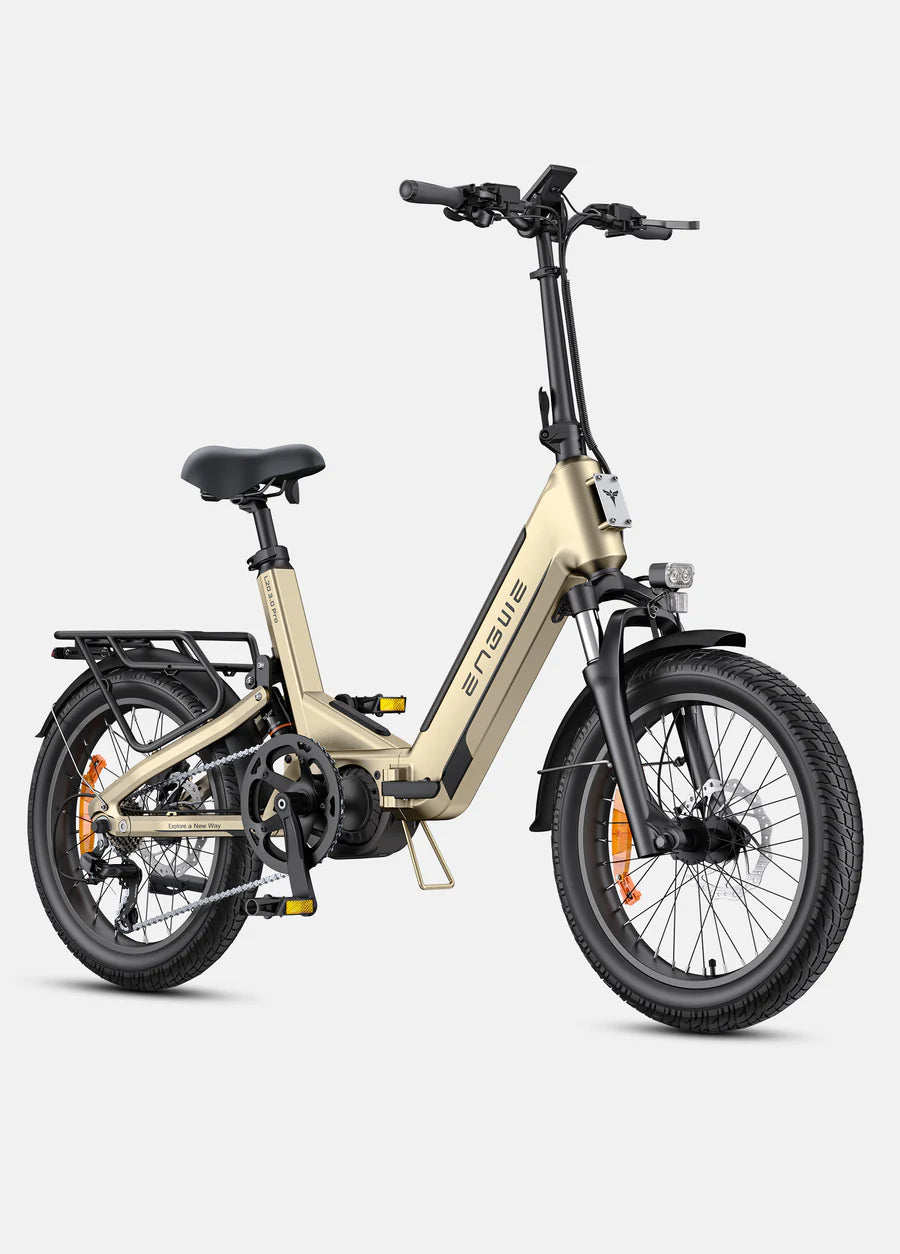

Model L20 3.0 Pro
Max Load Capacity 150kg (330 lbs)
Ride Height 5'1" - 6'3" (155cm - 190cm)
Certification CE (EN15194)
Pedal Assist 5 Levels
Fold Yes
Lab Tested Range 160 km(Fully Charged)
Real-World Range 140 km(PAS 1)
110 km(PAS 3)
96 km(PAS 5)
Waterproof Ratings IPX7(Waterproof Wiring)
IPX6(Display & Lights)
IPX5(Motor & Controller)
IPX4(Battery Box)
Terrain Tarmac Roads & Bicycle Routes
Gravel-Paved Paths
Sandy Beaches & Grass
Country Roads & Paved Trails
Bike Weight 32.8 kg(72.3 lbs)
Gross Weight Approx. 42kg(92.6 lbs)
Frameset
Frame Material 6061 Aluminum Alloy, Internal Battery, Step-Through Design
Frame Style Compact, Full Suspension
Fork Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum
Rear Suspension 30mm Travel
Wheel Set
Tires 20" × 3.0" Urban Hybrid Tires

Size

Unfolded
Ride Height 5'1" - 6'3" (155cm - 190cm)
Max Load Capacity 150kg (330 lbs)
Package Dimensions 144*27*64 cm
A-Handlebar Height 110.2cm
B-Total Length 172.0cm
C-Reach 51.2cm
D-Standover Height 38.0cm
E-WheelBase 116.5cm
F-Minum saddle Height 82.0cm
G-Maximum saddle Height 102.0cm

Please note: There may be a difference of 0~5 cm between measured and actual data.

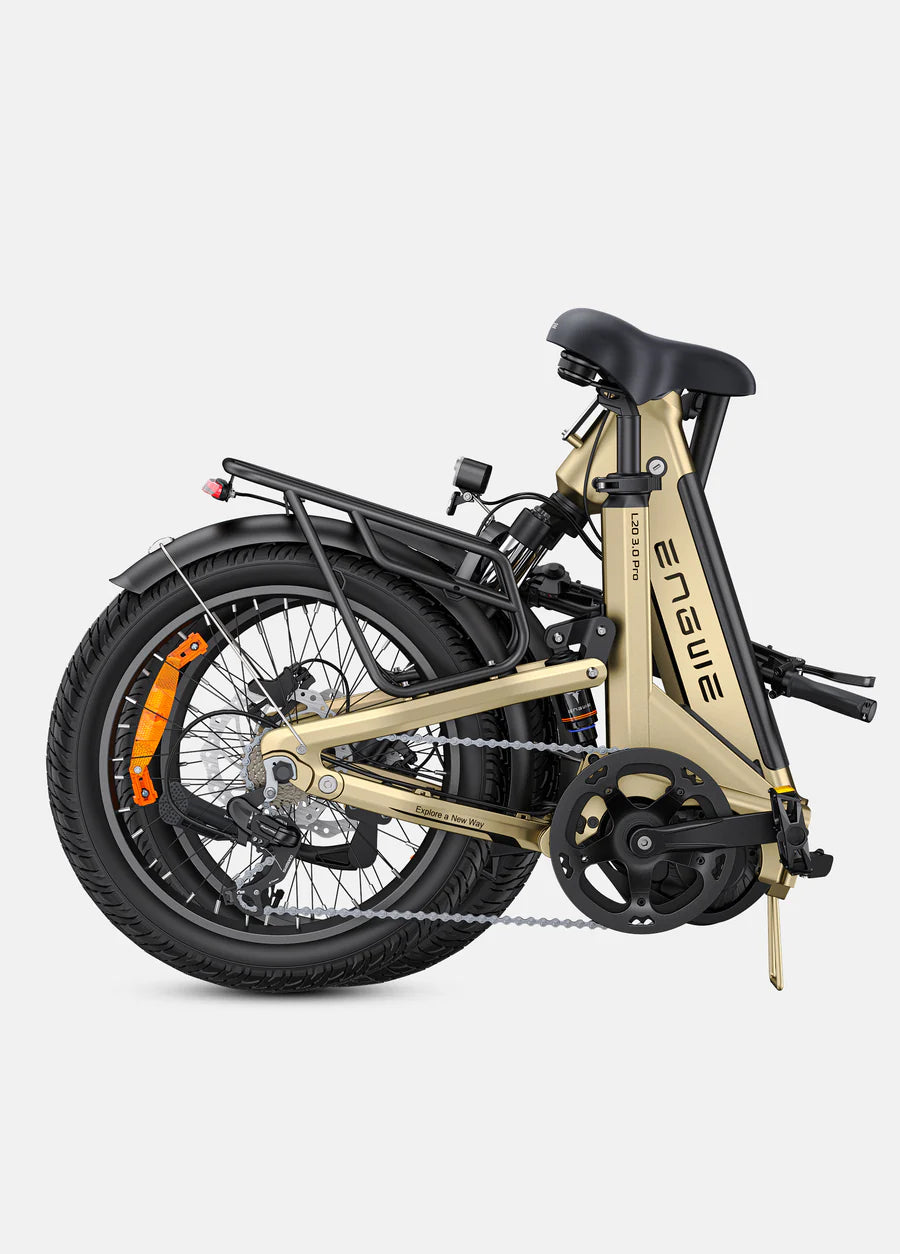

Folded

Folded Size

102*53*78 cm
A-Height 78 cm
B-Length 102 cm
C-Width 53 cm

Please note: There may be a difference of 0~5 cm between measured and actual data.

What's in the Box?

L20 3.0 Pro E-Bike *1
Battery 48V 15Ah Samsung Lithium-Ion*1
Charger 54.6V 8A *1
Pedals *2
Front & Rear Fenders *1

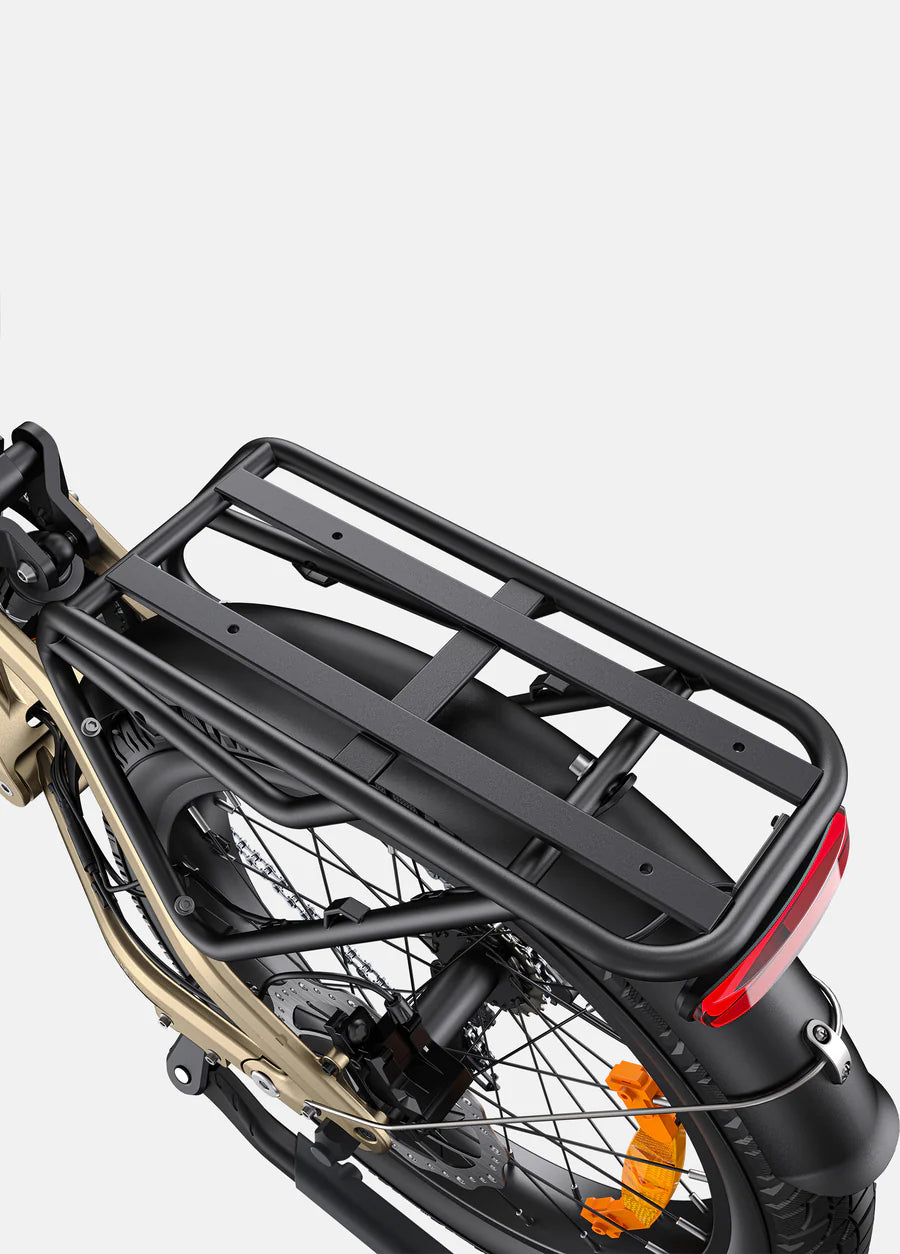

Rear Rack *1
Bike Kickstand *1
Assembly Tools *1
User Manual *1

Please note: The product you receive is based on the option you selected to order.

LOCAL KNOWLEDGE

Need help before you buy?

Ask RideVolt about range, fit, compatibility or delivery.

Ridevolt BikesL20 3.0 Pro
€1.699,00
